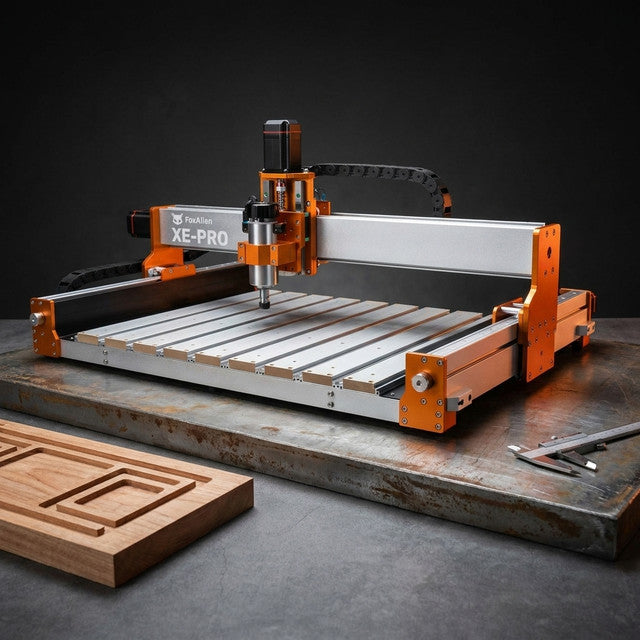

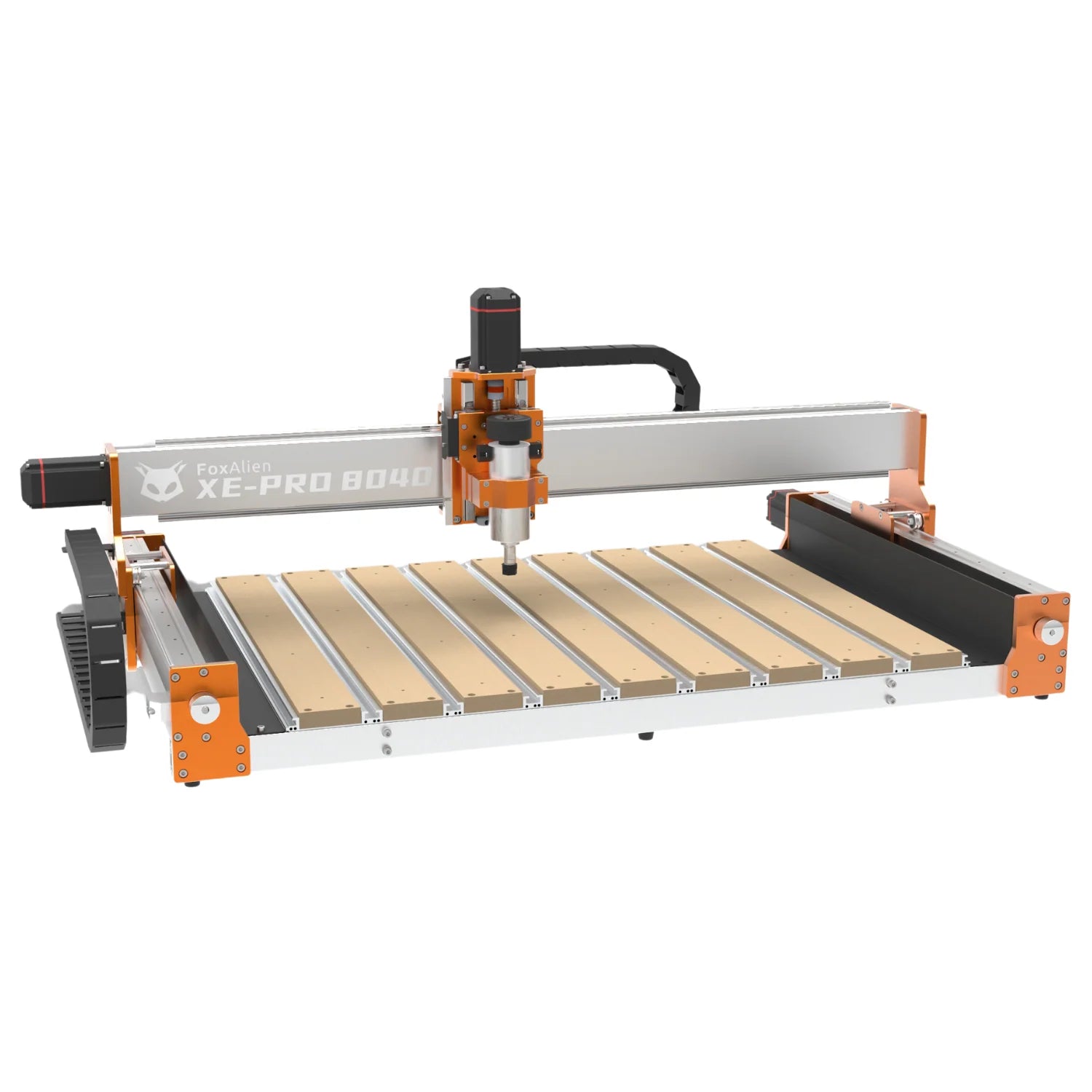

CNC Router Machine XE-PRO with 8040 Extension Bundle Kit

CNC Router Machine XE-PRO with 8040 Extension Bundle Kit offers enhanced performance compared to its previous generation with upgraded ball screws, closed-loop stepper motors, and a powerful 400W spindle. Designed for precision carving and cutting, it efficiently handles a wide range of woodworking projects. With a durable metal frame, expanded working area options, and built-in offline control, this CNC router delivers reliable and versatile machining capabilities.

Specifications

• Model Name: XE-PRO

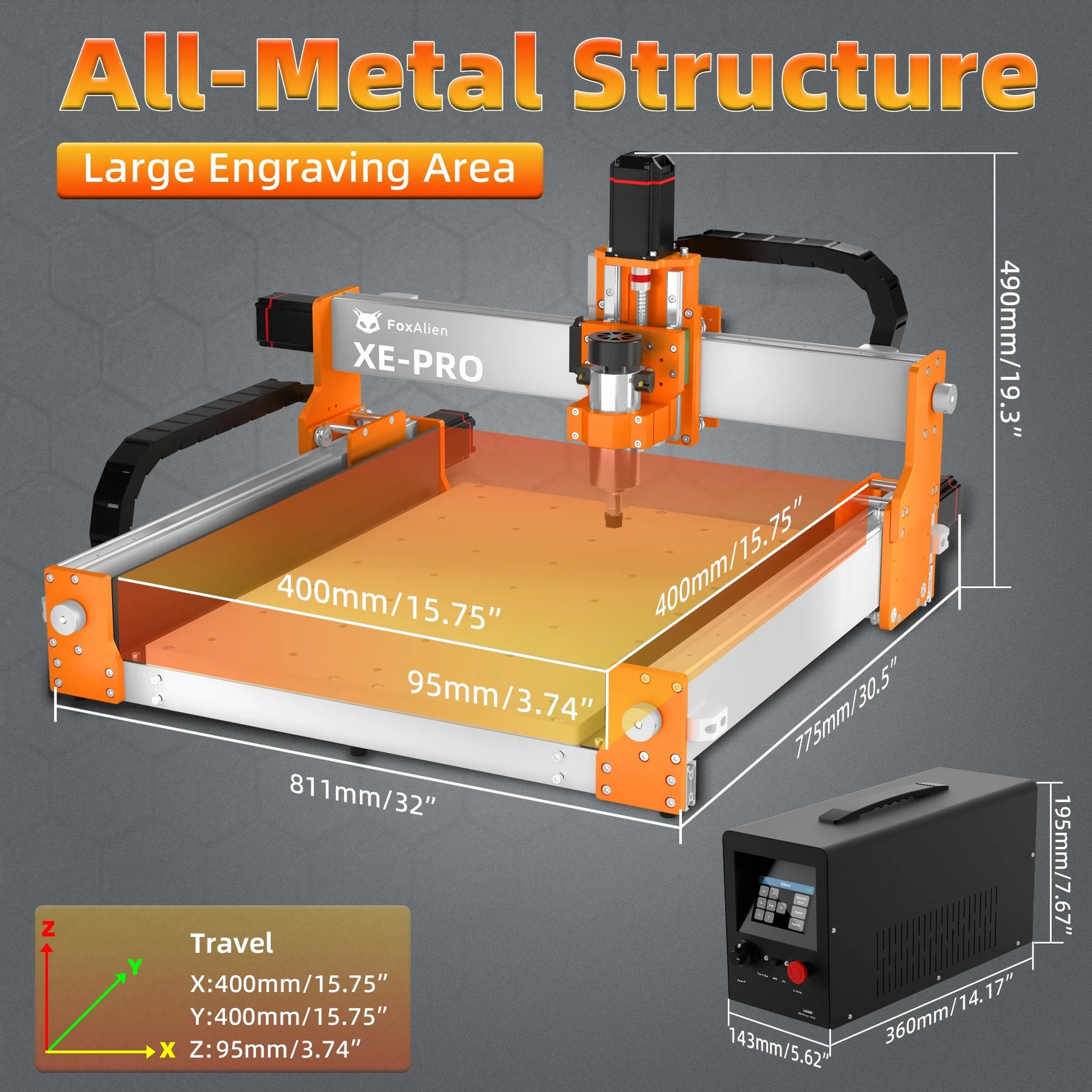

• Working Area: 400x400x95mm / 15.8"x15.8"x3.74"

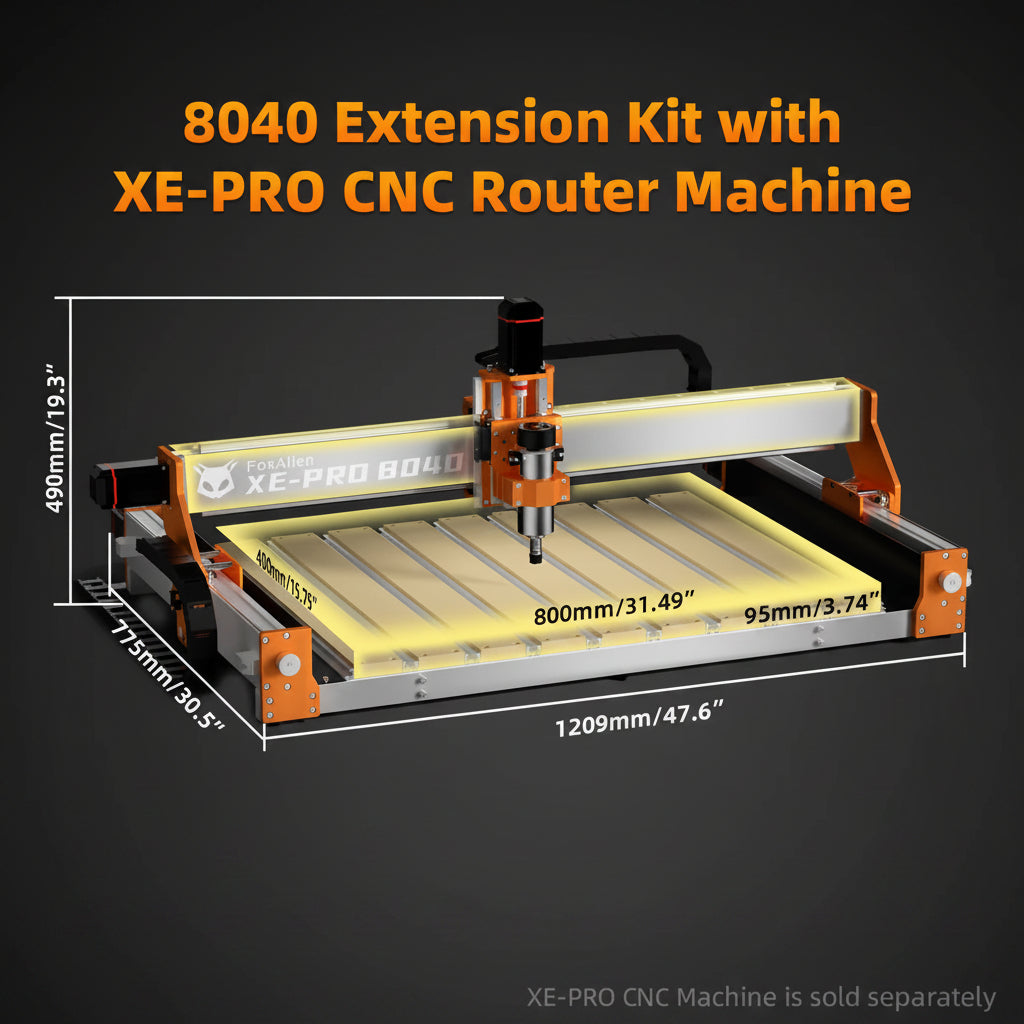

• 8040 Extension Kit Working Area: 800x400x95mm / 31.6"x15.8"x3.74"

• Frame & Structure: Metal Frame & MDF Spoilboard

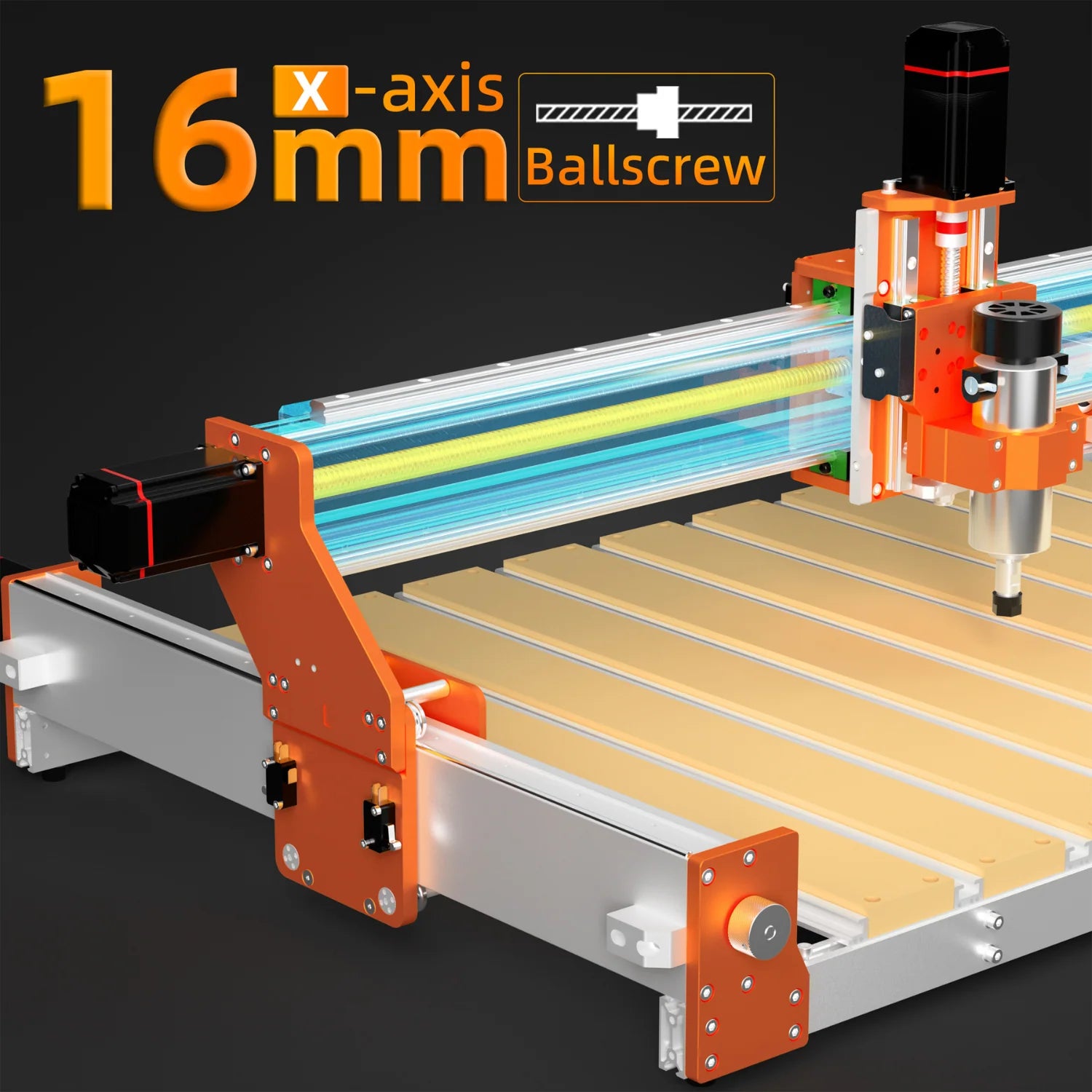

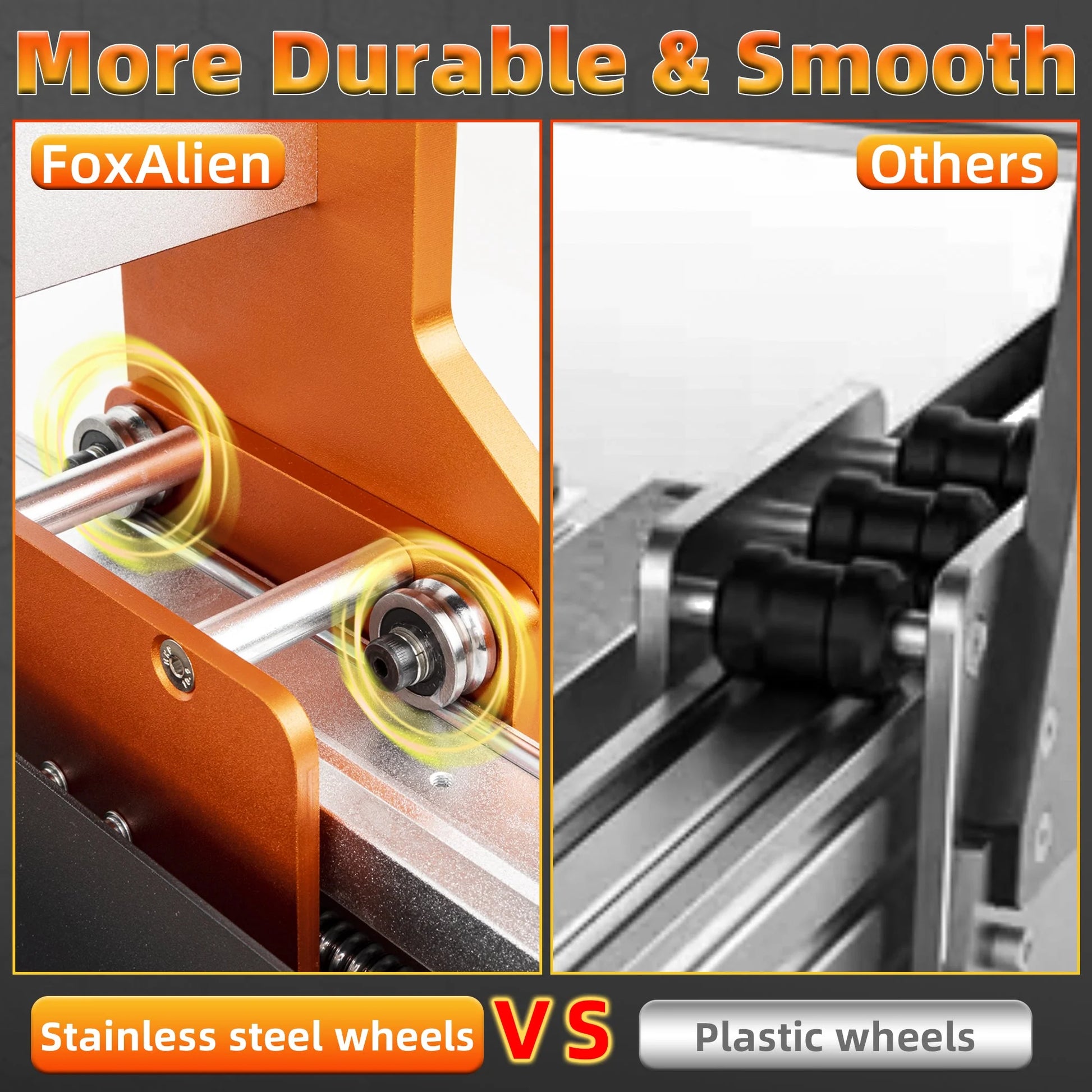

• X Axis Drive System: 1204 ballscrew and steel wheel

• Y Axis Drive System: 1204 ballscrew and steel wheel

• Z Axis Drive System: 1204 ballscrew and dual linear rails

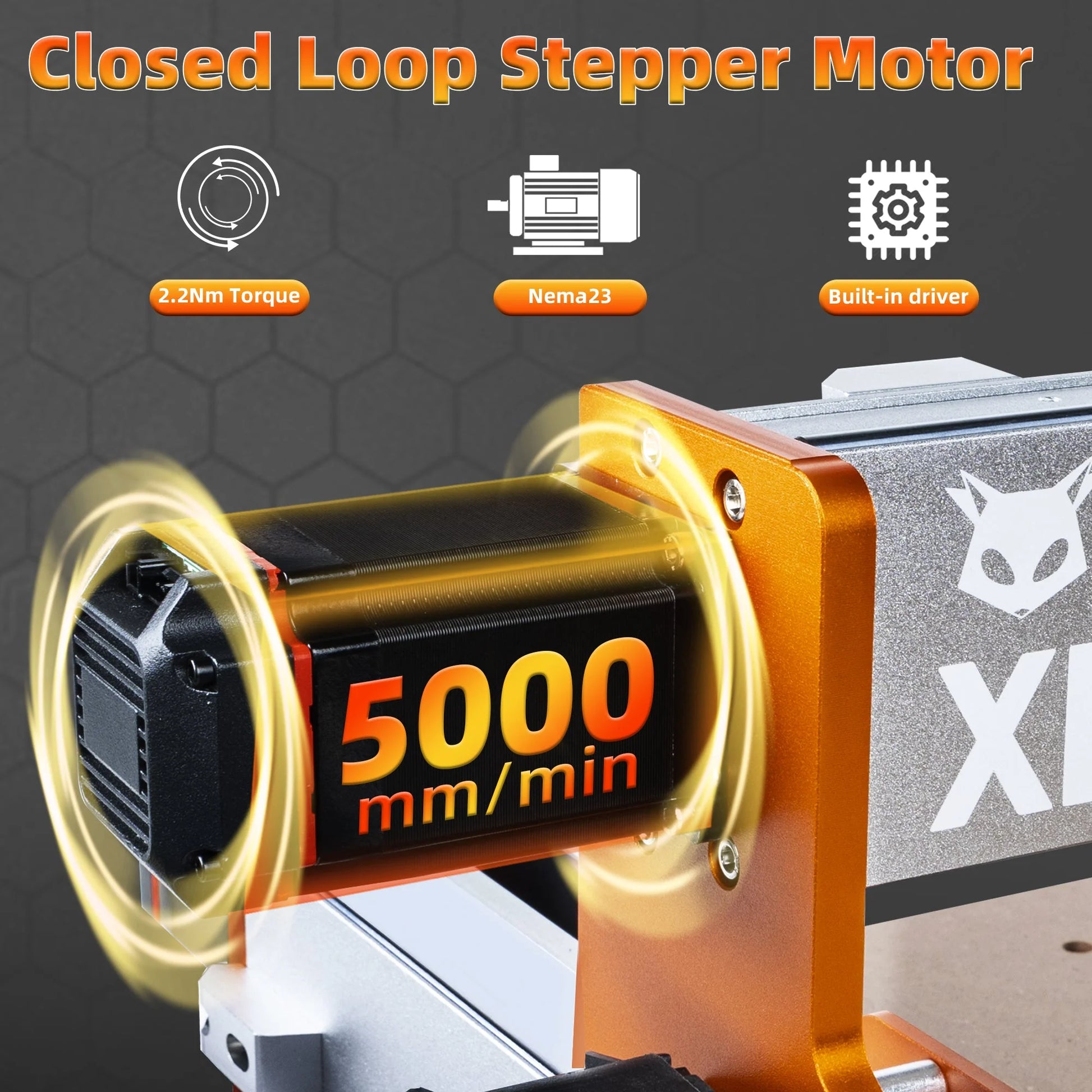

• Stepper Motors: Nema23 76mm Closed Loop Stepper Motor

• Max Speed: 5000mm/min

• Spindle Power: 400W

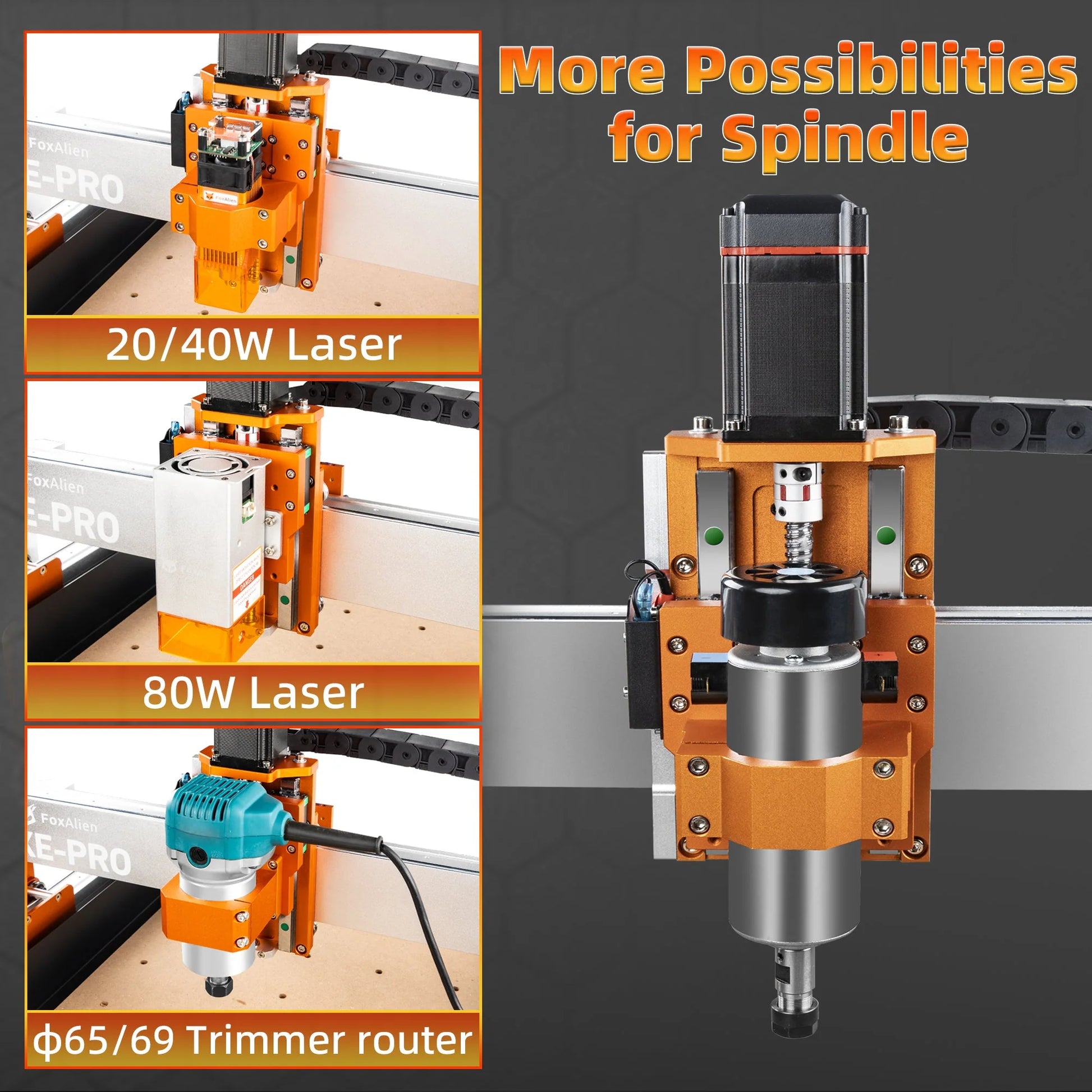

• Extra Mount: 65mm & 69mm

• Offline Control: Built-in

• Weight: 40000 g

Features

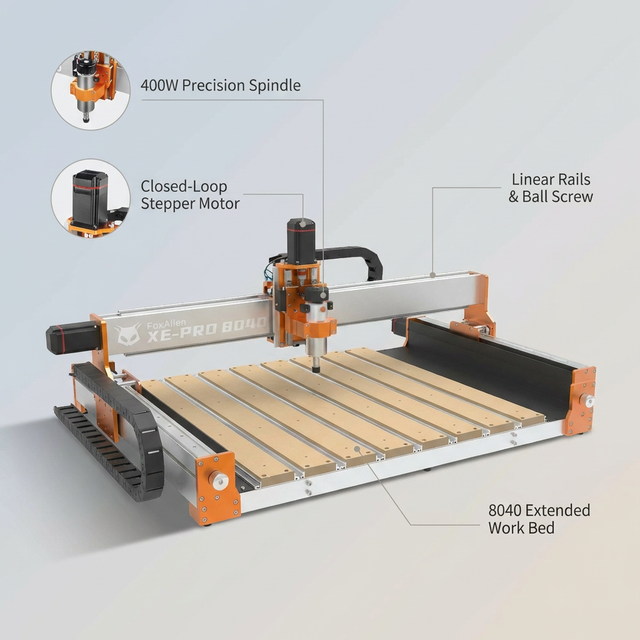

• Ball Screw System: Provides improved precision and smoother motion across all axes.

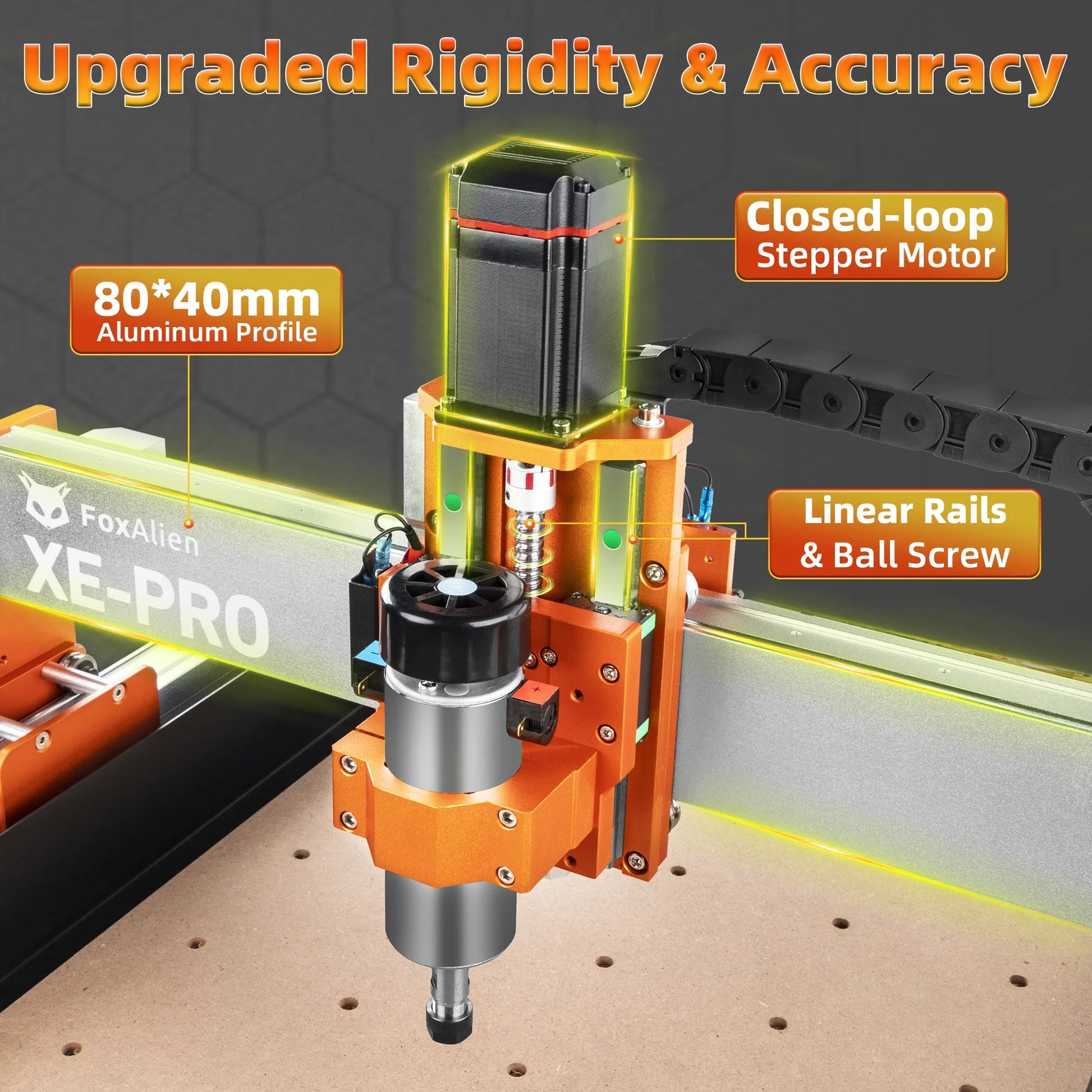

• Closed-Loop Stepper Motors: Enhances accuracy and reduces positioning errors during operation.

• Powerful Spindle: 400W spindle supports a wide range of carving and cutting applications.

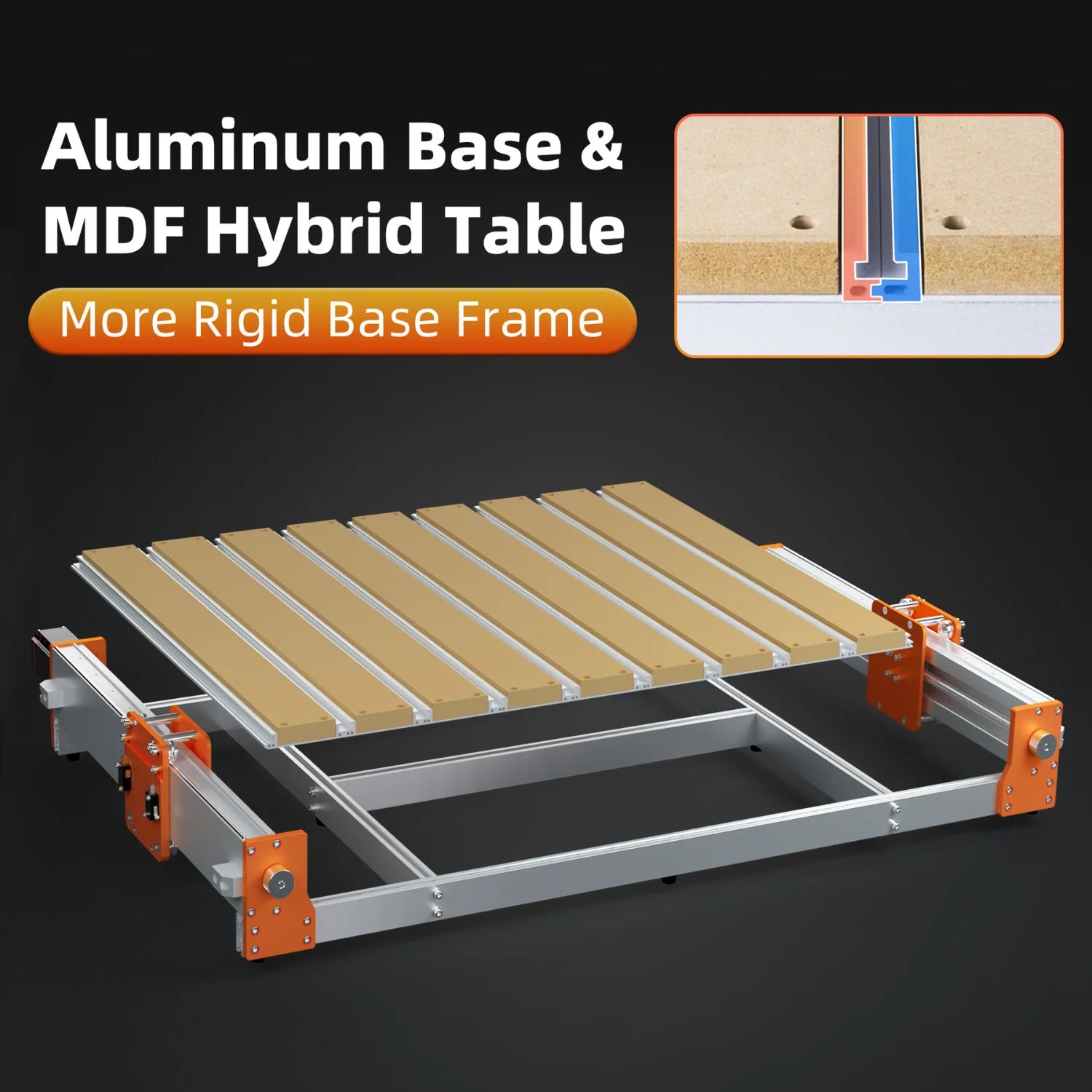

• Durable Construction: Metal frame with MDF spoilboard ensures stability and long-term performance.

• High-Speed Performance: Capable of reaching speeds up to 5000mm/min for efficient machining.

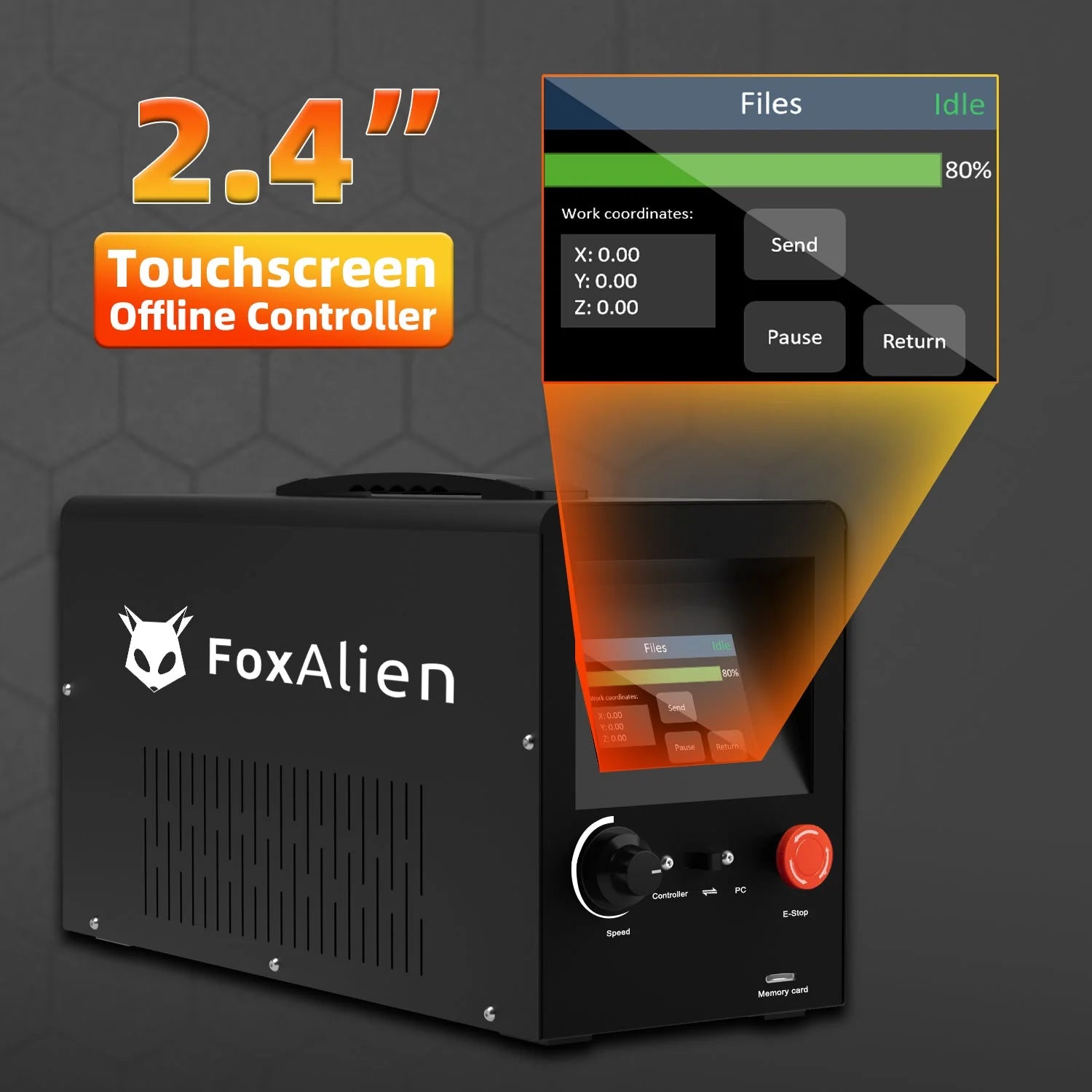

• Offline Control: Built-in control allows operation without constant computer connection.

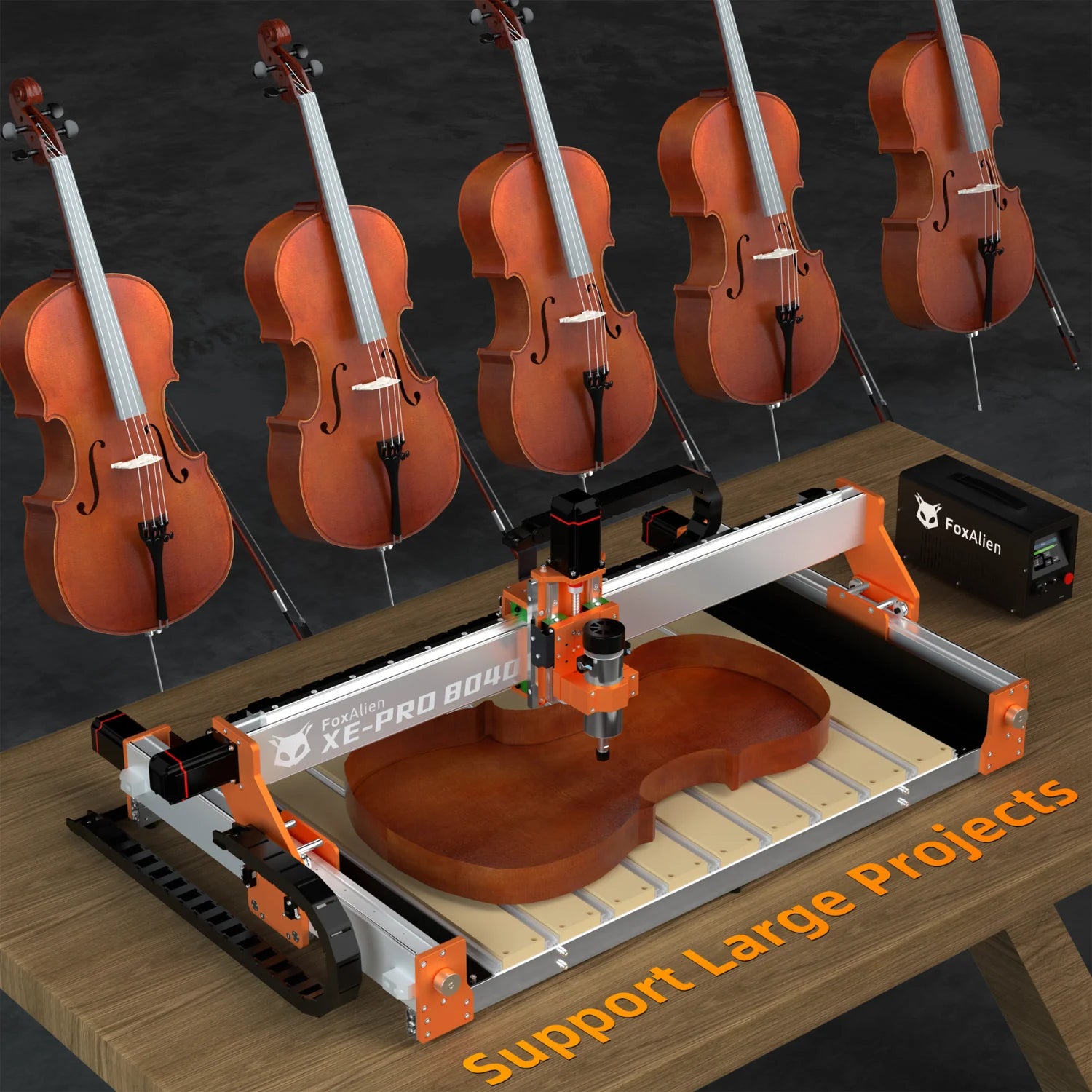

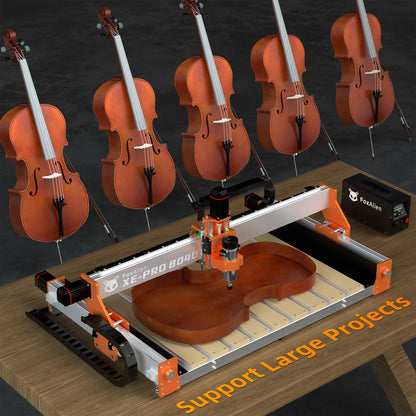

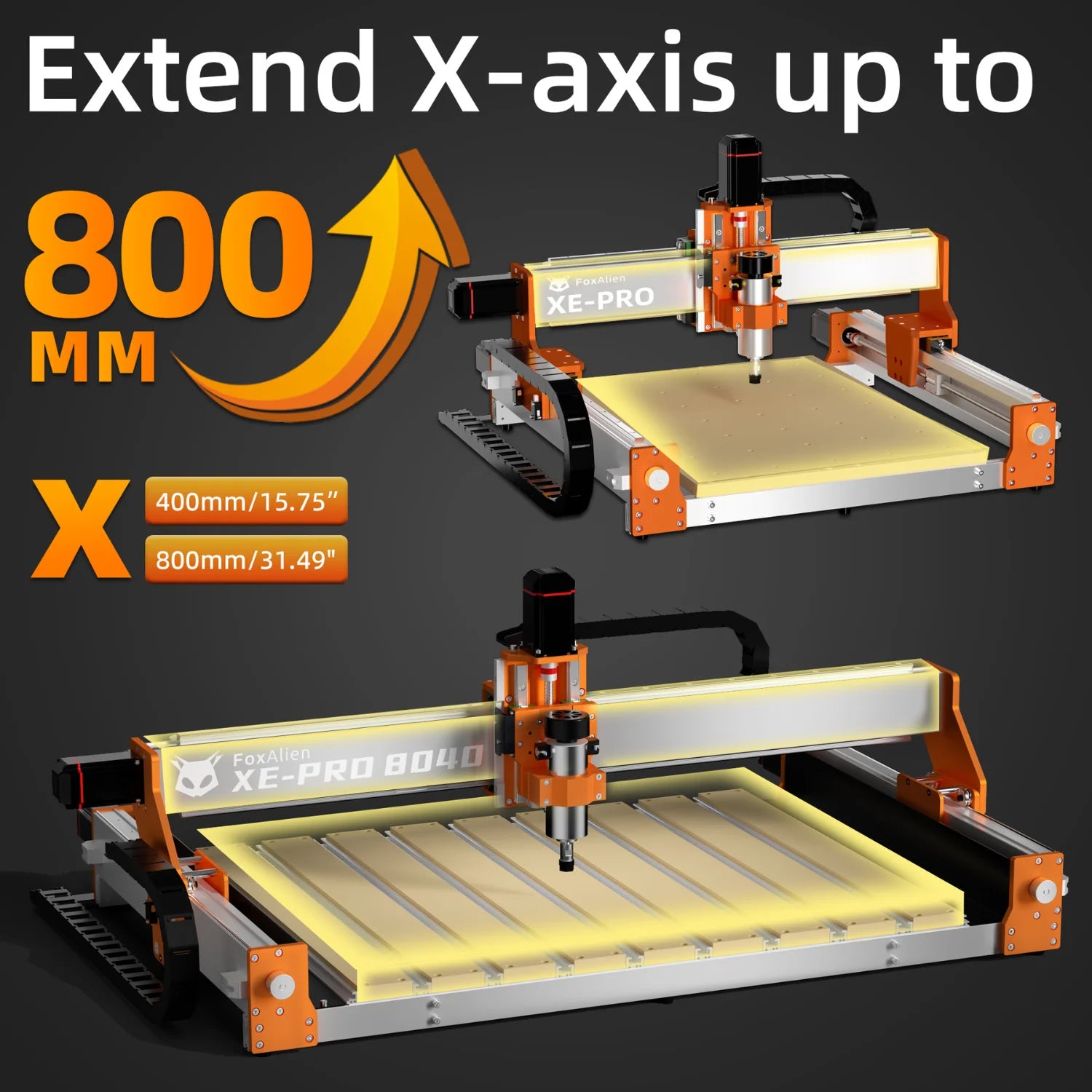

• Expandable Workspace: Includes 8040 extension kit for increased working area flexibility.

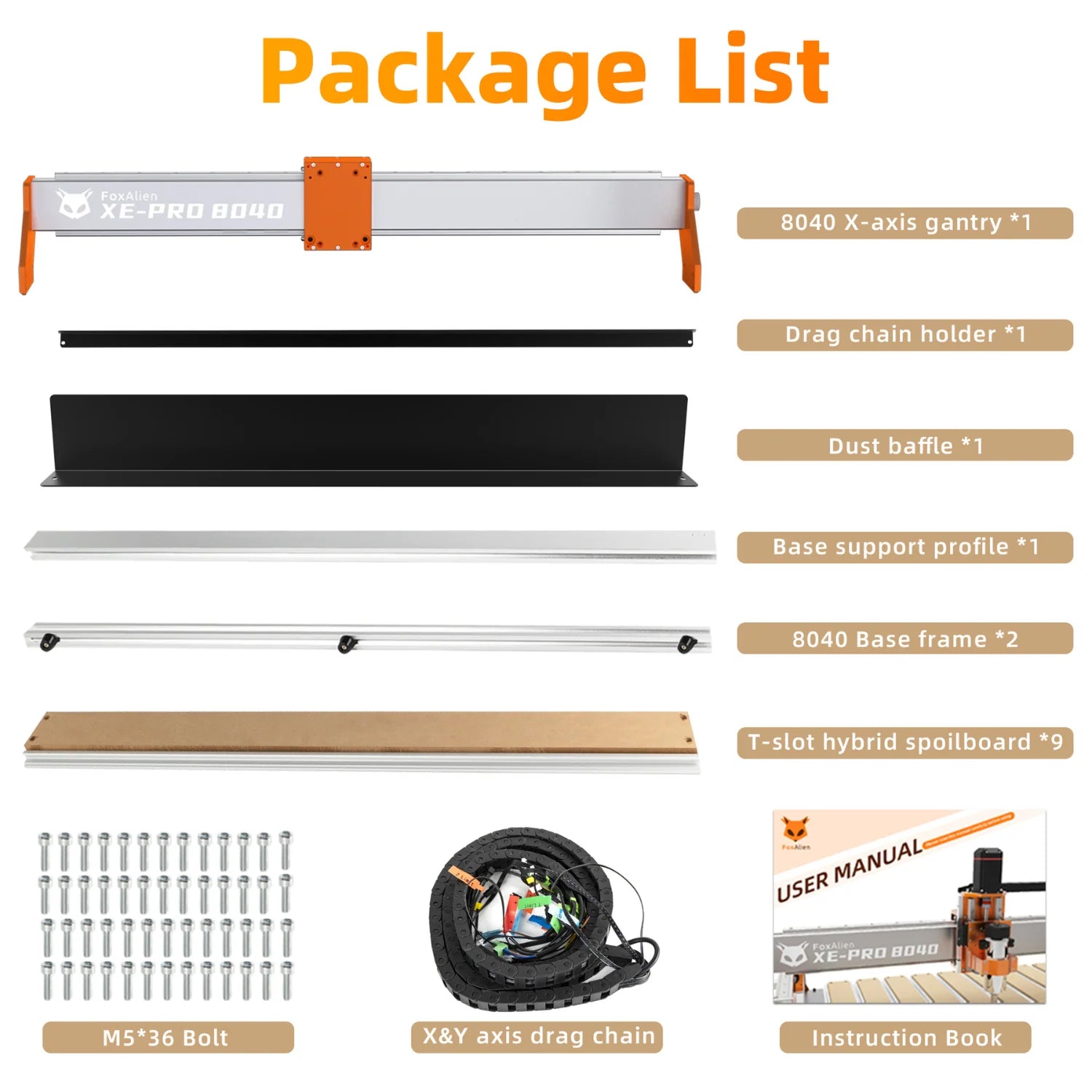

Package Contents

• Included Items: 1 CNC Router XE-PRO, 1 MDF Table, 1 Controller, 2 Sets of Engraving Bits (10pcs/set), 1 USB Cable, 1 Power Cord, 1 Box of Screws and Tools, 1 User Manual, 1 8040 Extension Kit
